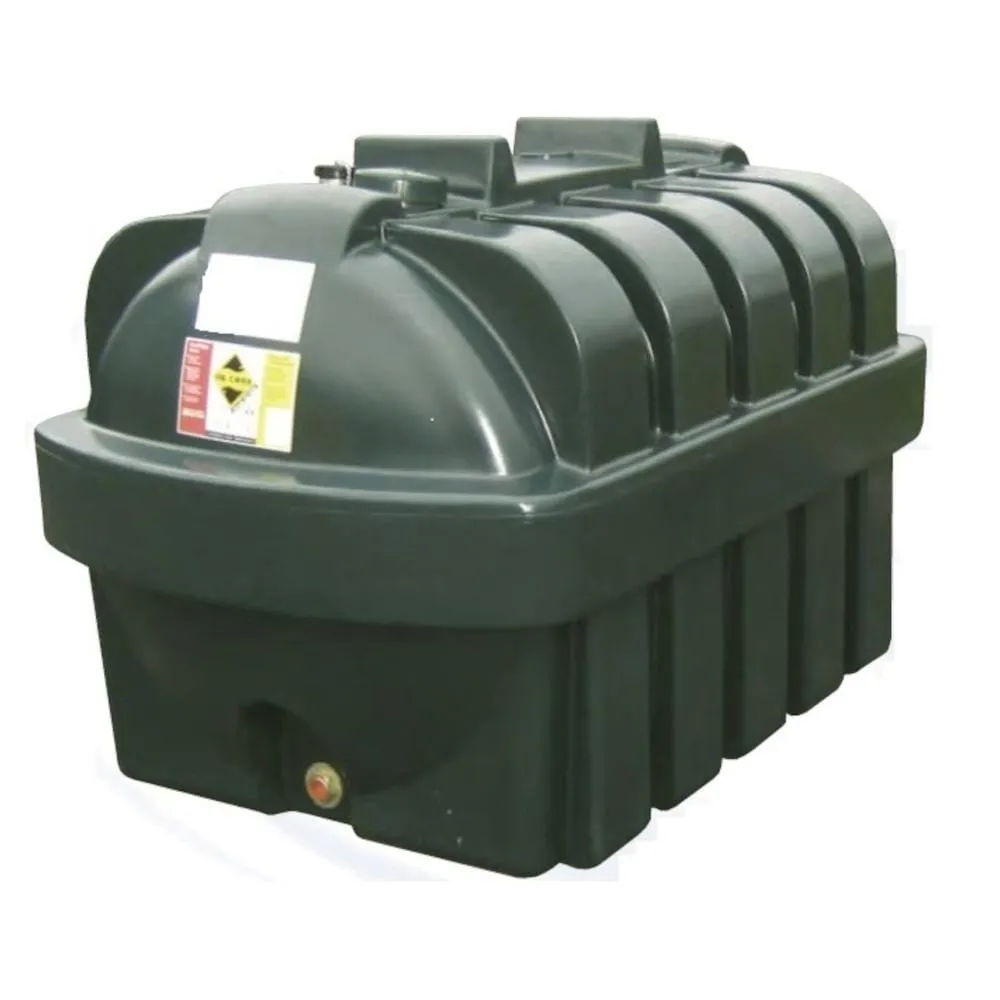

Atlantis 1300 Litre Single Skin Oil Tank - SIP.H1300
This Single Skin Heating Oil Tank from Atlantis is a great choice for domestic heating oil installations. This plastic single skin oil tank has a 1300 litre capacity and 3 year warranty, this tank is suitable for heating oil, kerosene or diesel.

Delivered complete with:

• 3 Year Warranty ()
• 2" Fill Point
• 4" Inspection Point with Screw Cap

• 1" BSP Bottom Outlet (industry standard to fit a bottom outlet fitting kit to your pipework)

Tank Dimensions:
Length: 1720mm
Width: 1130mm
Height: 1110mm
Weight: 55kg

Optional Extras:

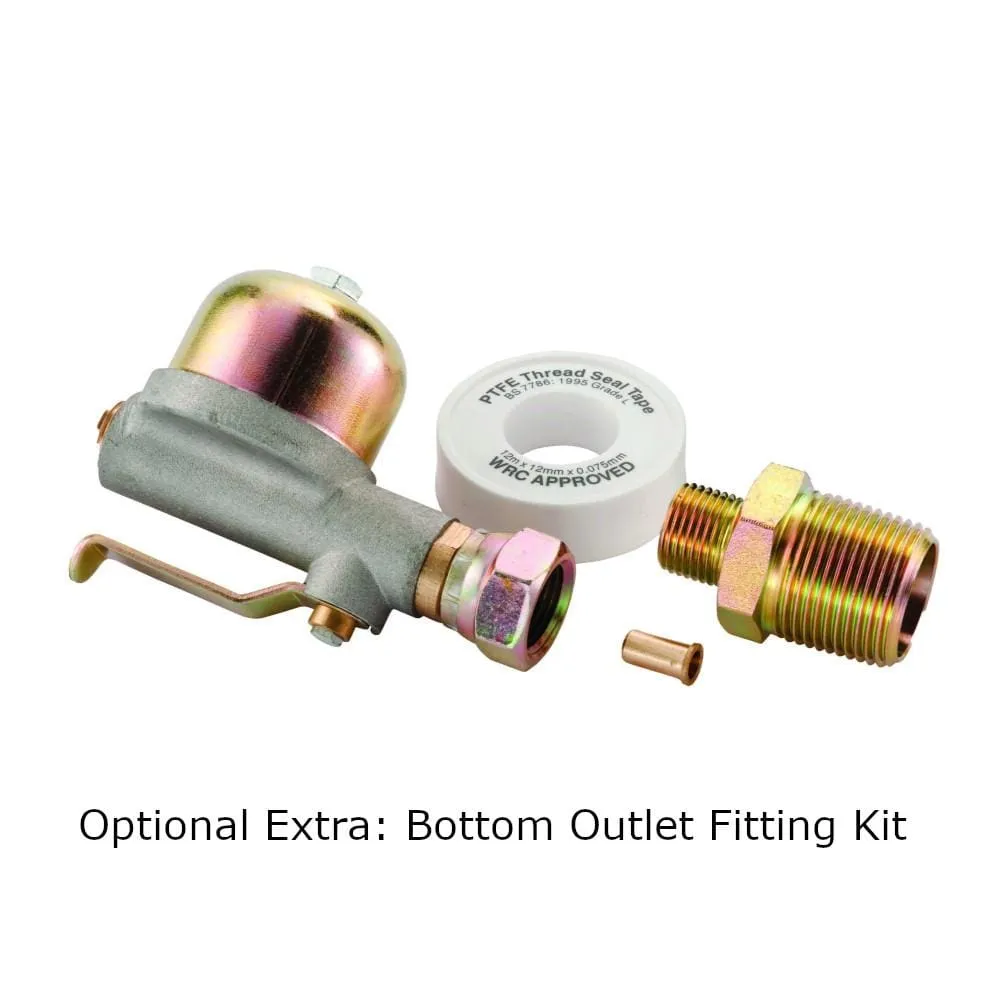

• Bottom Outlet Fitting Kit (Economy) - Everything you need to connect the 1" bottom outlet on the tank to your pipe work (isolation valve, filter bowl, compression fitting, PTFE tape) - not required if using the sight gauge

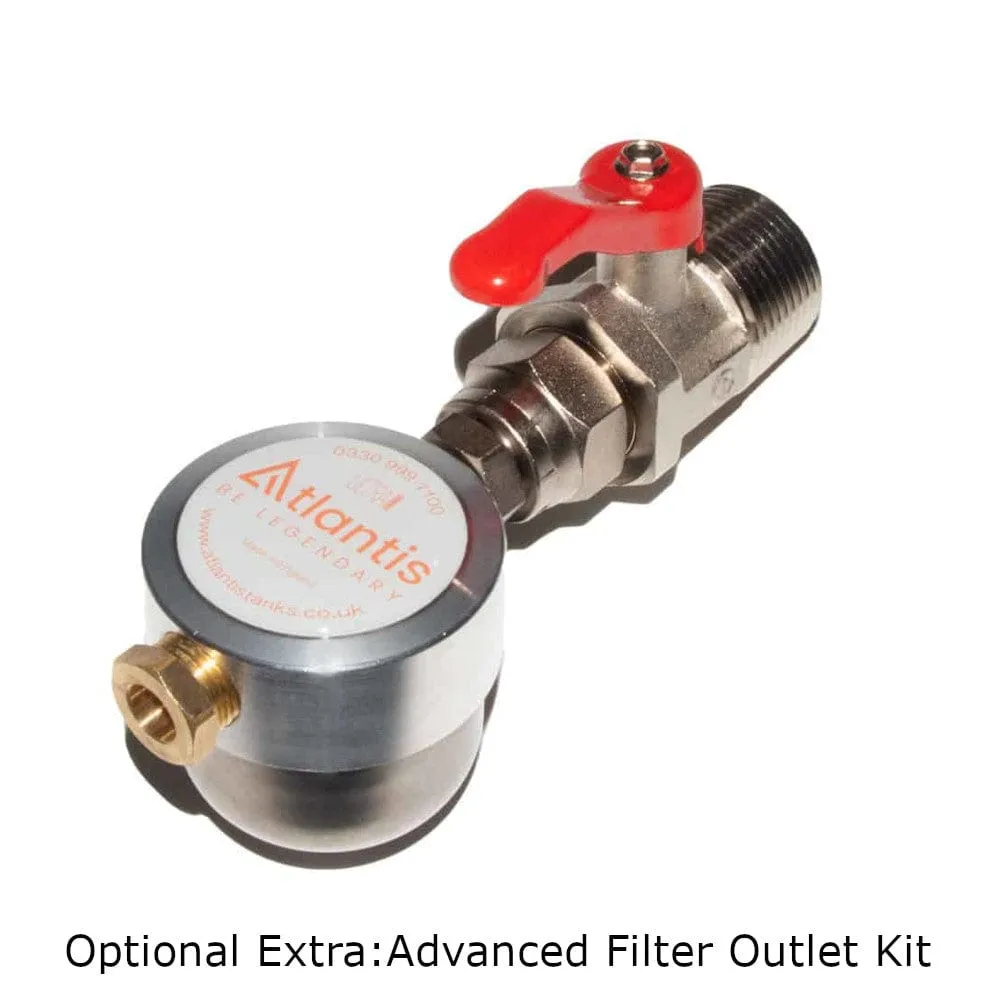

• Bottom Outlet Fitting Kit (Advanced) -  1" shut off valve and filter.  The filter is fitted after the valve.  All components are UK made. Supplied with 1 roll of PTFE tape.

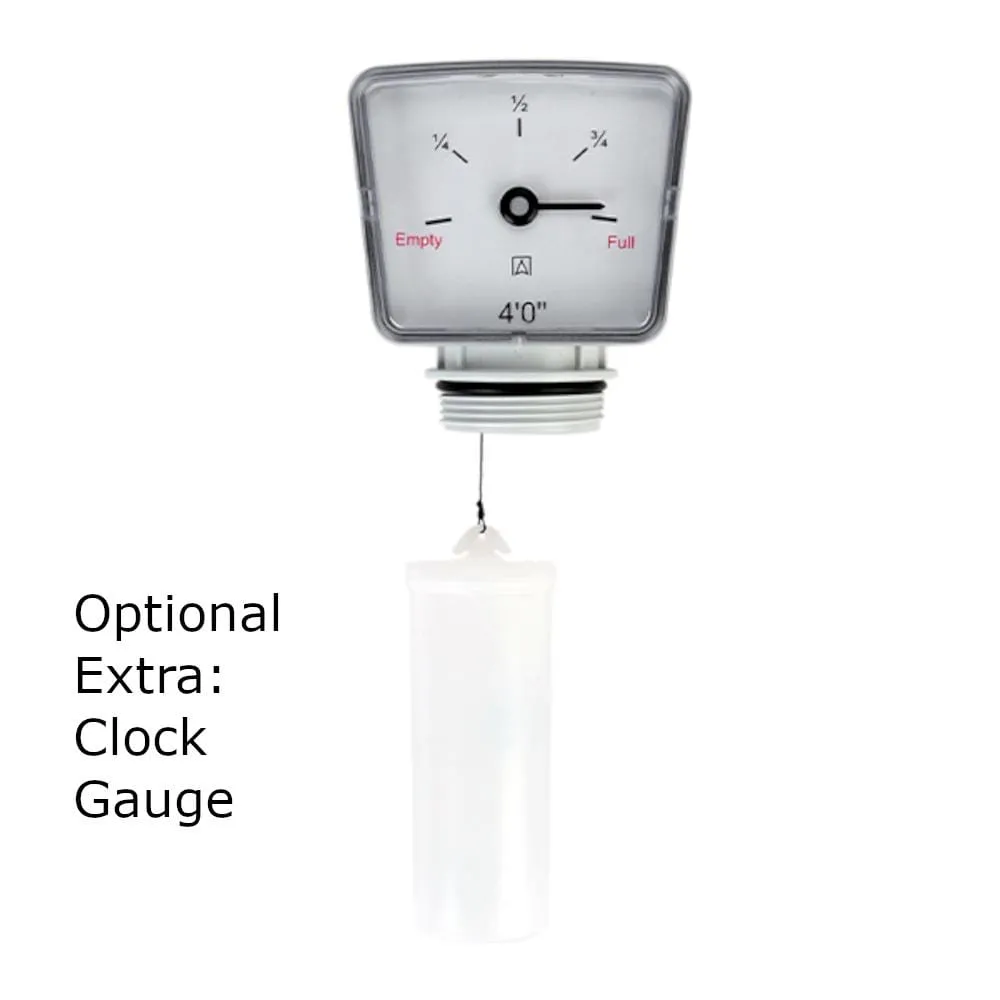

• Clock Face Contents Gauge - A simple gauge using a float in the tank attached to the clock face gauge that is screwed into the outlet on top of the tank.

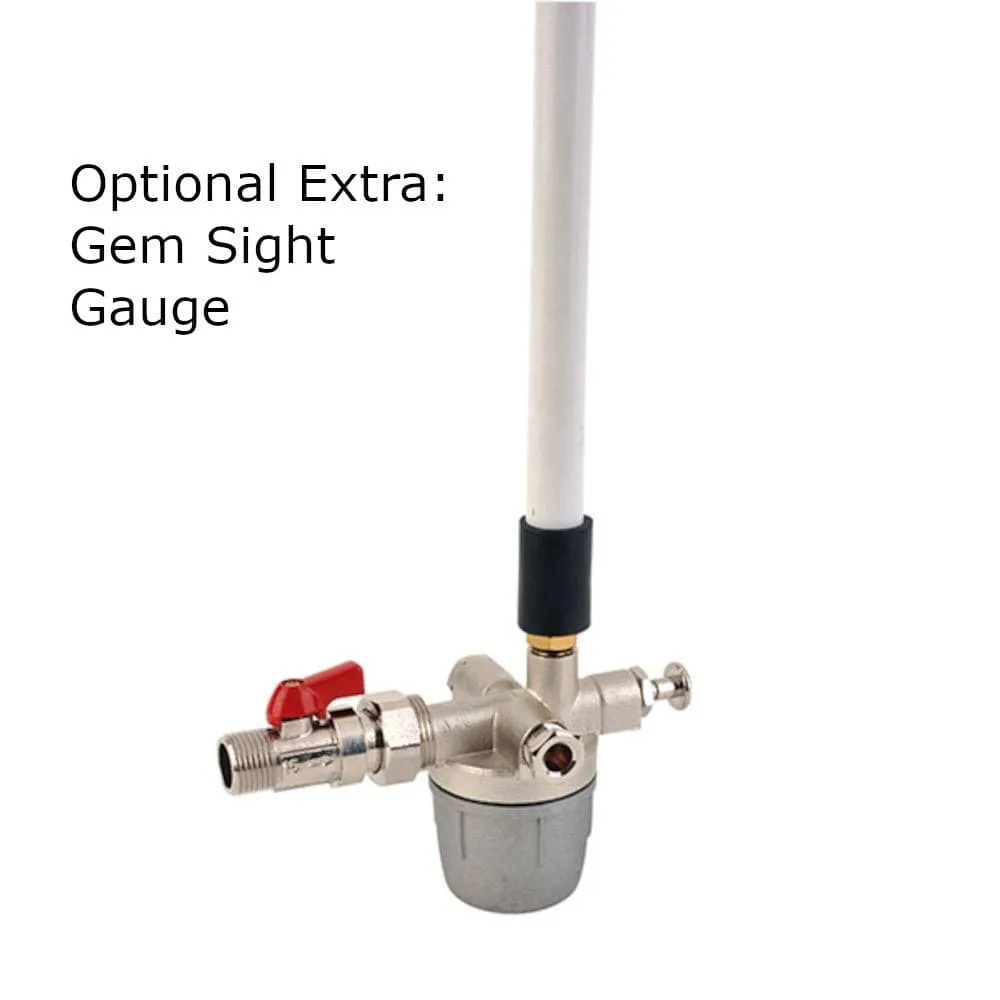

• Gem Sight Gauge - A tube at the side of the tank with a simple "pull to read" oil tank level indicator. Complete with an integrated paper filter and incorporated isolation valve. Multi-directional outlet (both at 90 degrees to the tank) so it can feed up to 2 boilers.

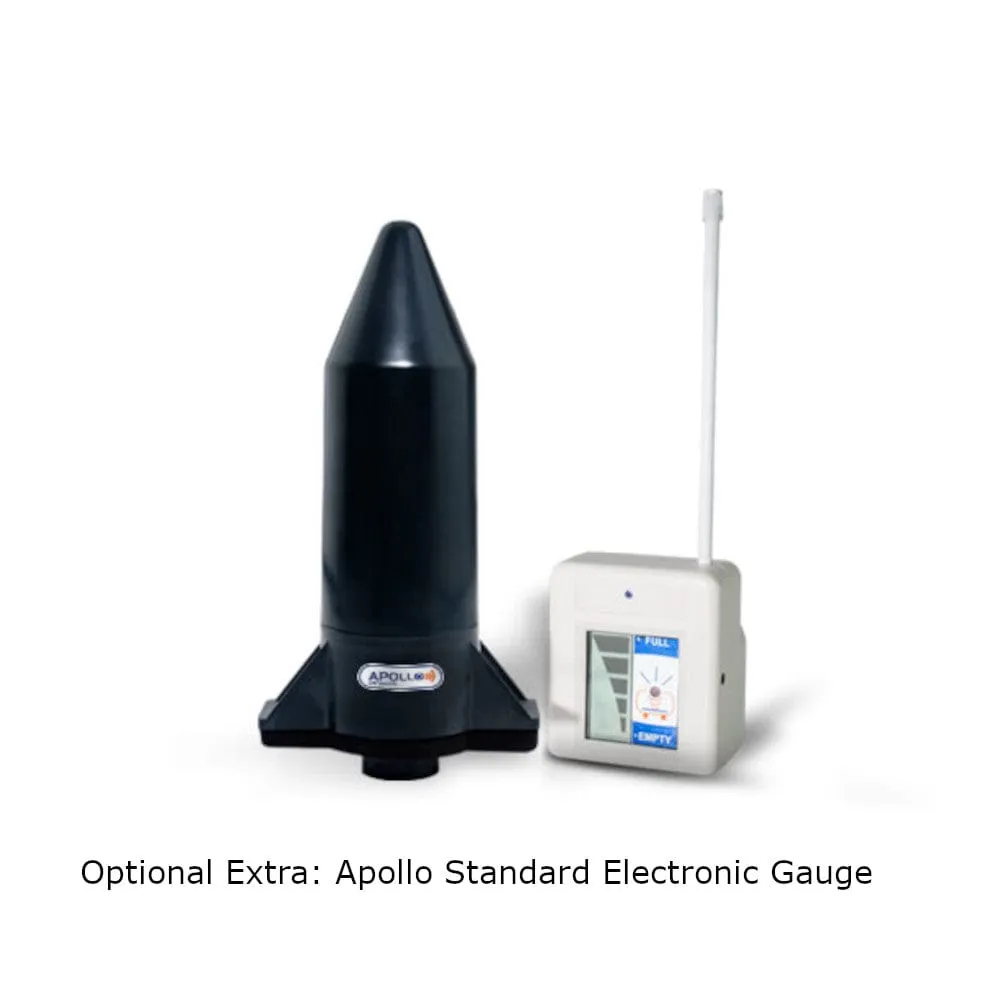

• Apollo Standard Electronic Contents Gauge - A simple 2 part gauge, one part sits on the inner tank and sends a message to the second part plugged into a electric socket up to 200 metres away.

Installation Requirements:
Cement Base Length: 2320mm
Cement Base Width: 1730mm
